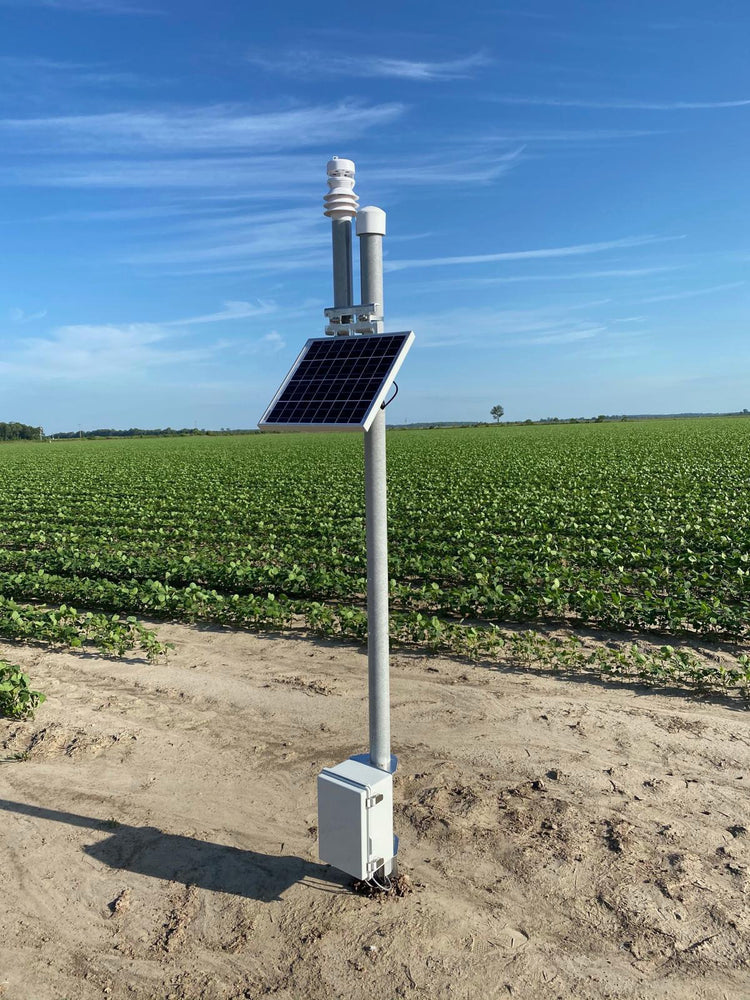

WSD100 Digital Ag Weather Station



Our exclusive weather monitoring system. With no moving parts and no bigger than a 16oz coffee mug, this robust little station packs an entire premium suite of sensors. The WSD-100 connects to an Agility® Sensor Radio to bring the weather observations back to the MyFarm servers where supplemental calculations are performed for ET, dew point/frost point and wet bulb. The MyFarm web app displays current observations and calculates daily observations needed for irrigation management decisions.

NOTE: For use in the US only.

Includes:

  • Rain/Snow Dectector (Radar)
  • Barometric Pressure, Temperature, & Humidity
  • Ultrasonic Wind Speed & Direction
  • Solar Irradiance

Specifications

Measurement Range Accuracy Resolution
Wind Speed 0-40 meters/sec ±5% 0.1 meters/sec
Wind Direction 0-359° ±3° 1°
Temperature -40 to +80°C ±0.5°C 0.1°C
Humidity 0-100% ±5% 1%
Pressure 150-1100 hPa ±1 hPa 0.1 hPa
Precipitation 0-100 millimeters/hr ±10% 0.01 millimeters
Solar Radiation 0-2000 W/m2 ±5% 0.1 W/m2

Installation Video:
